48 Cell EVE Pallet MB31 314AH - International Warehouse

FREEShipping
Brand:
Sun fun Kits
SKU:
SFK-MB31-HPL-IW
Return Policy:
30 Days Returnable -10 ( Restocking Fee : 10.00% )
Shipping Availability:
Over 1 Month
Stock Status:
In Stock
Cell Capacity (AH)

Cell Capacity (AH)

314
Max Discharge (Amps)

Max Discharge (Amps)

250,304,500
Voltage

Voltage

3.2
Battery Terminal

Battery Terminal

SFK High Amp Terminal (300-500 Amps),Standard Button Terminal (200 Amps)
Battery Terminal

Battery Terminal:
Battery Terminal
Select your battery terminal.
Accessories

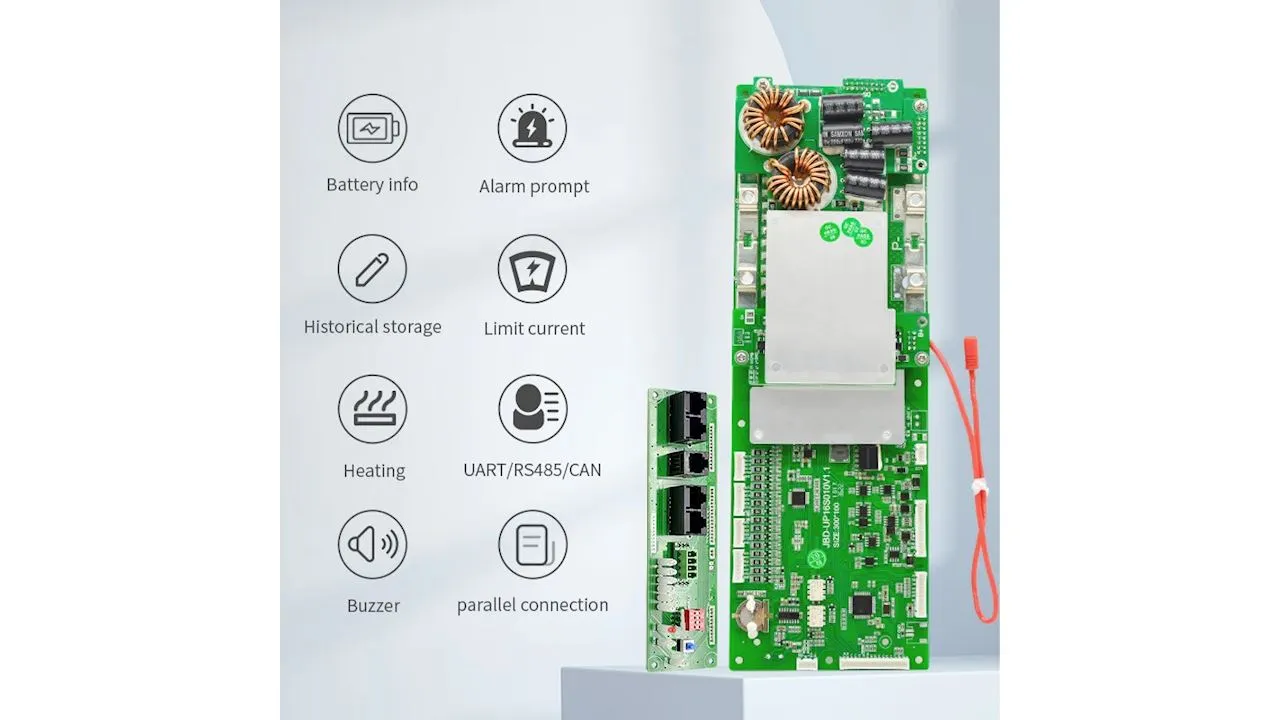

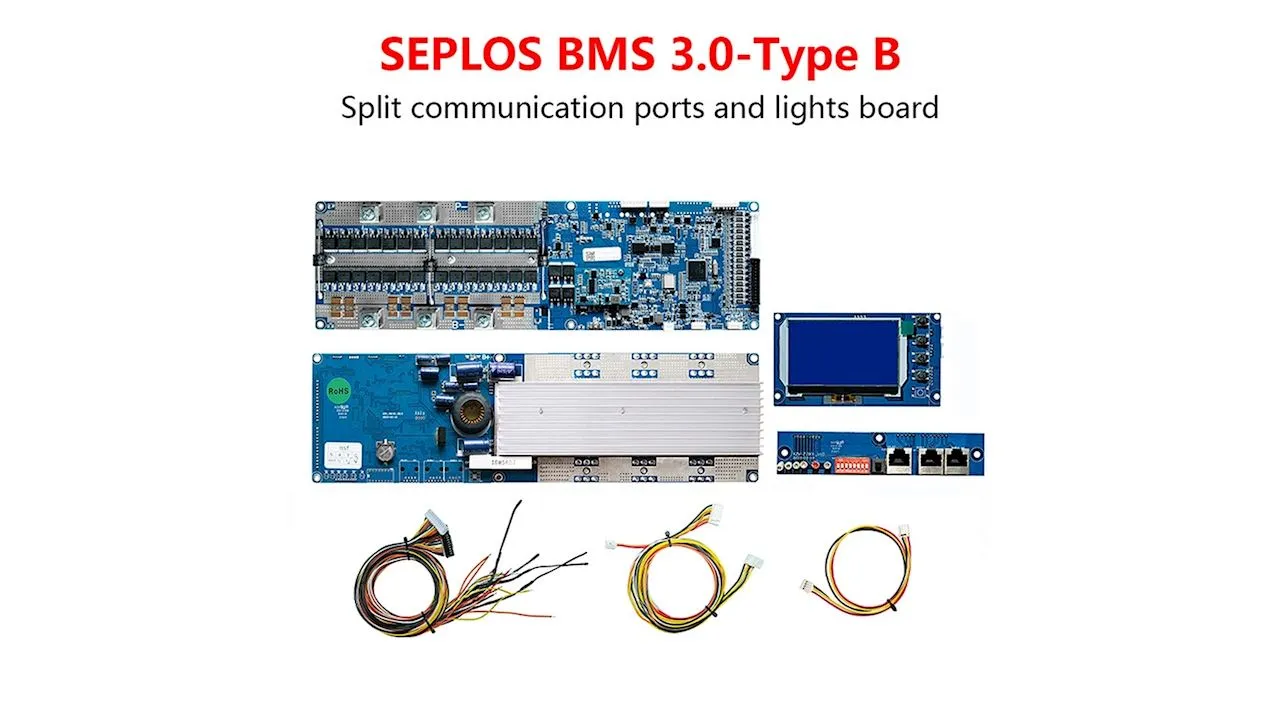

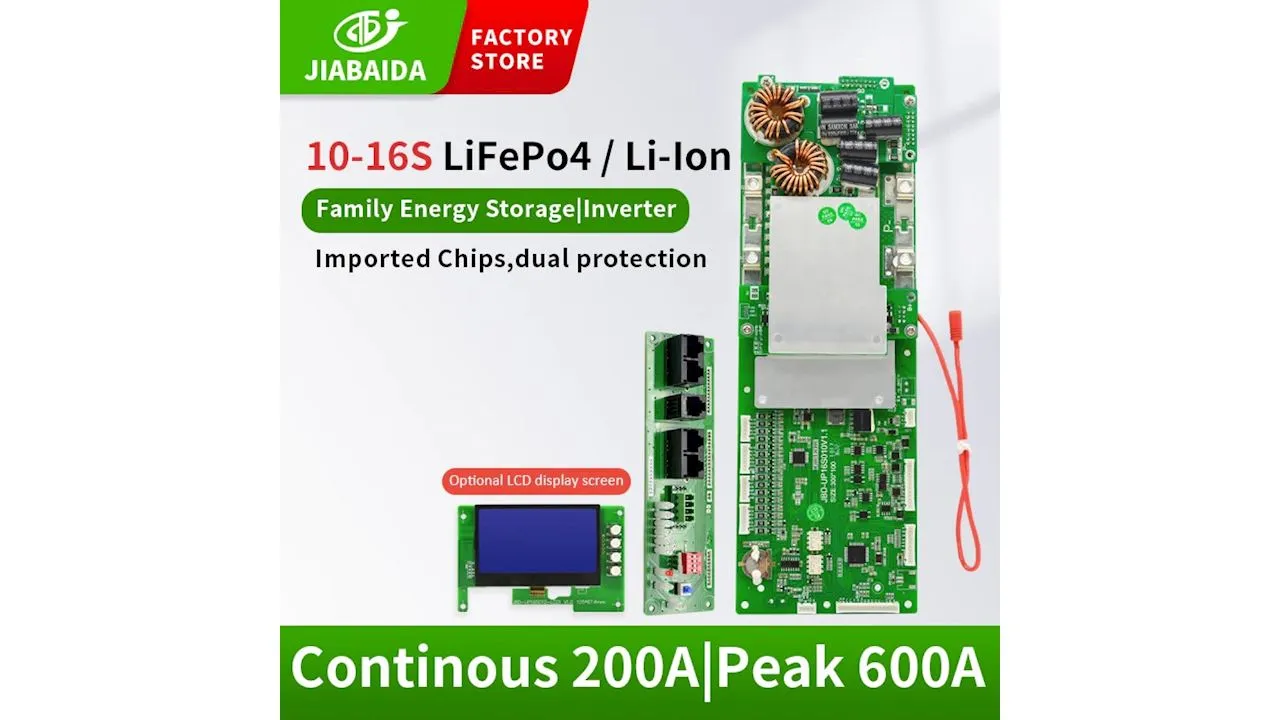

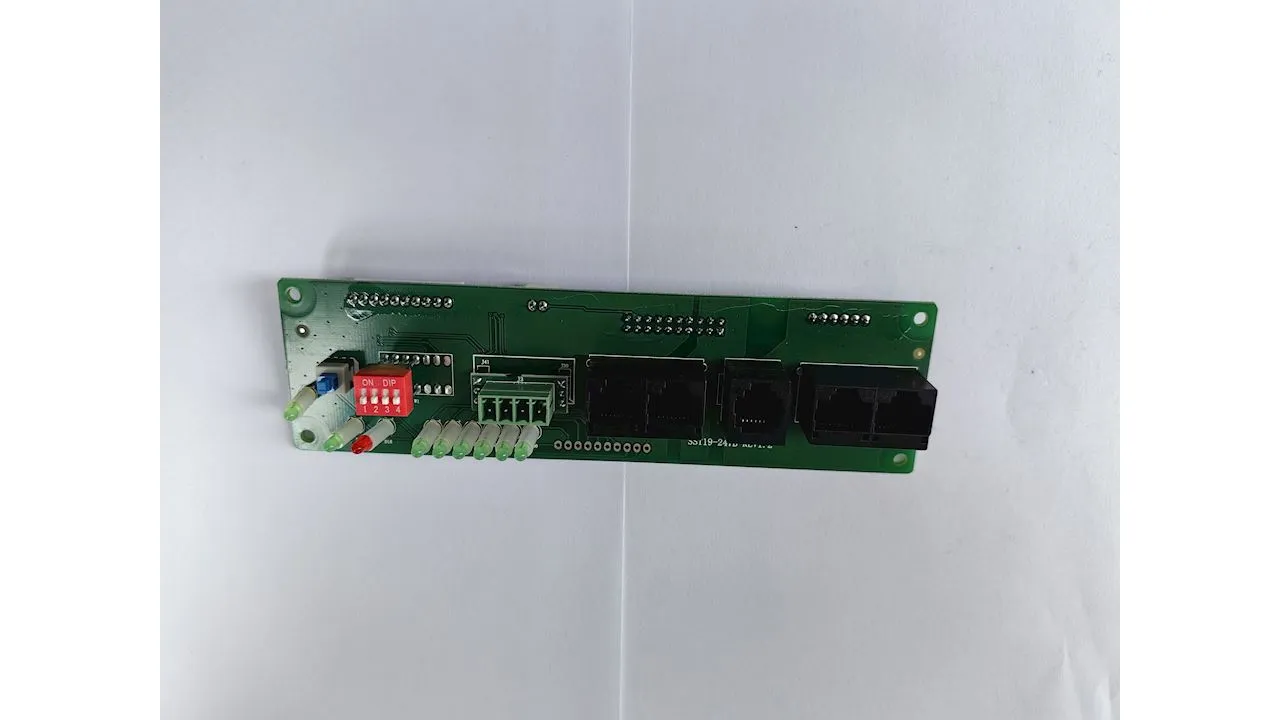

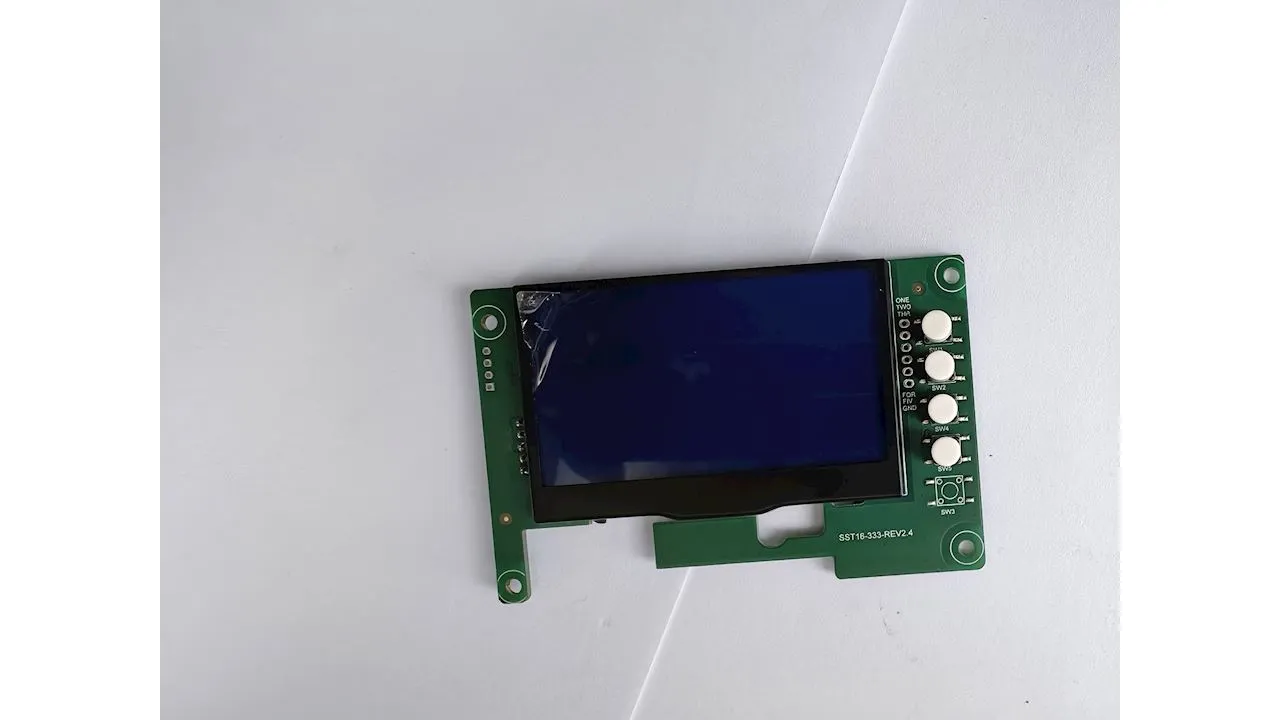

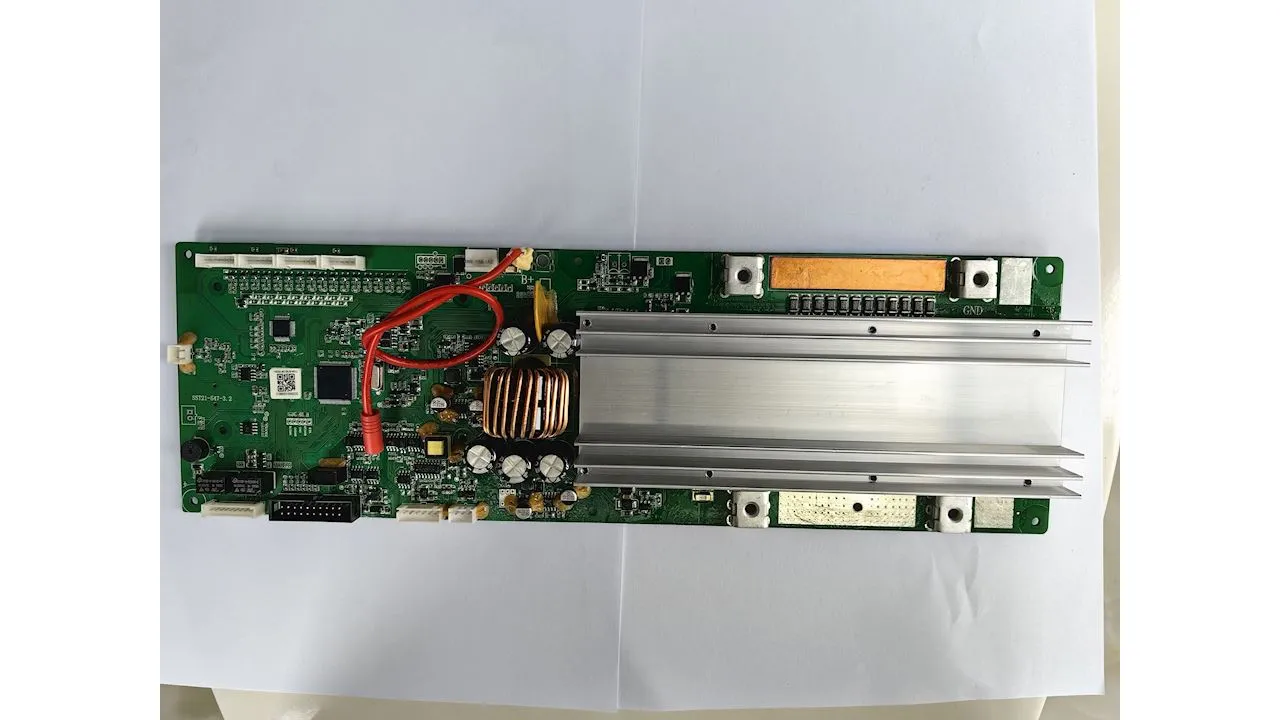

BMS:
BMS
3 Packs of 48v, Enterprise BMS with your pack

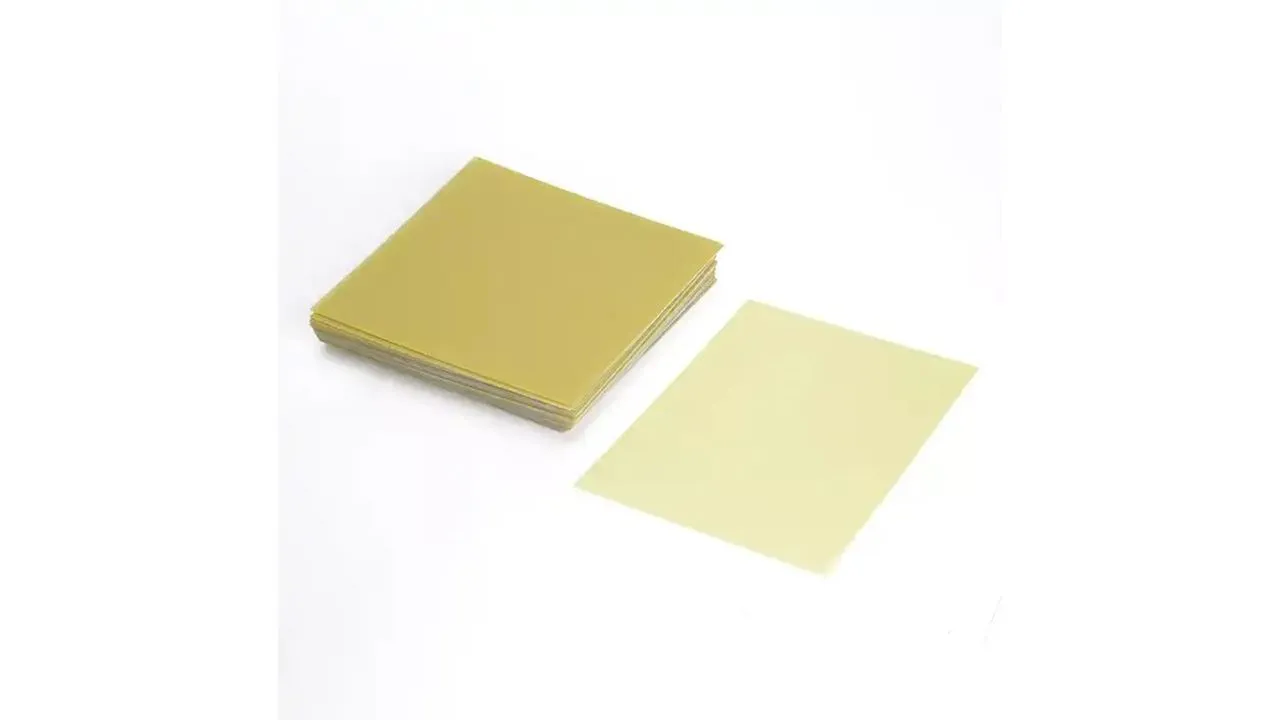

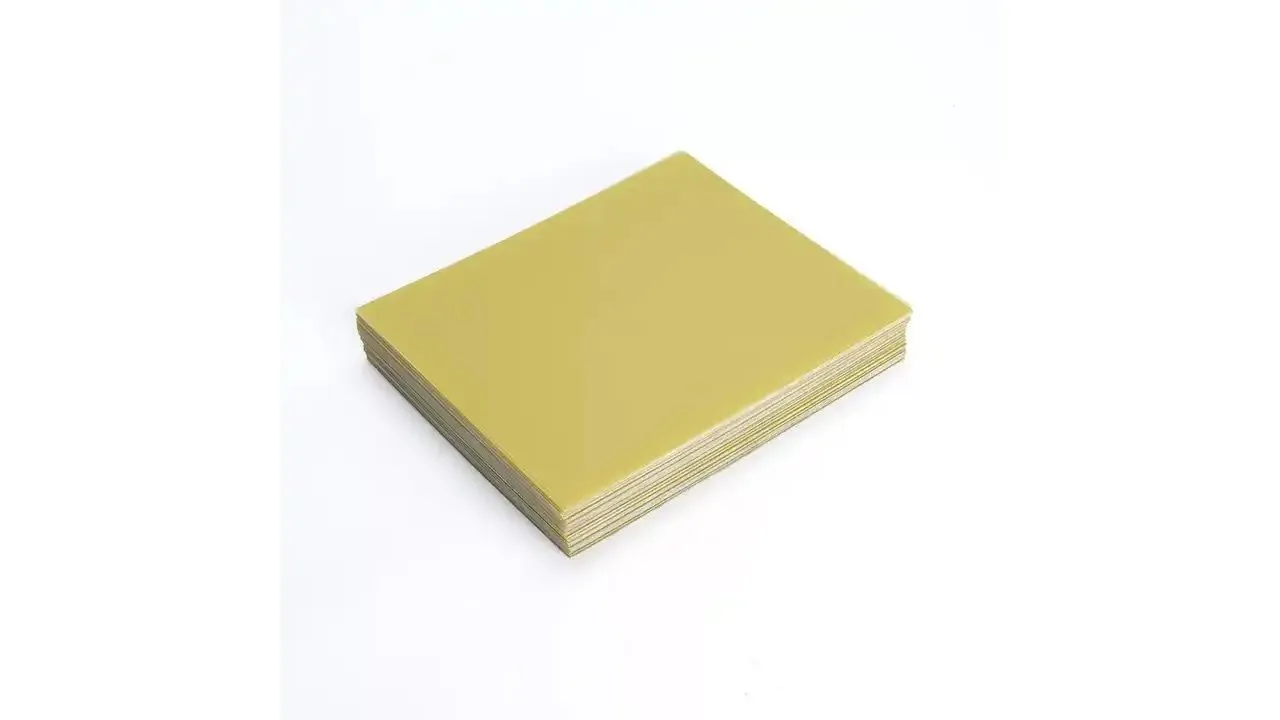

Cell Separator:
Cell Separator
Fiberglass separator sheets, select from .5mm to 1.5mm thickness

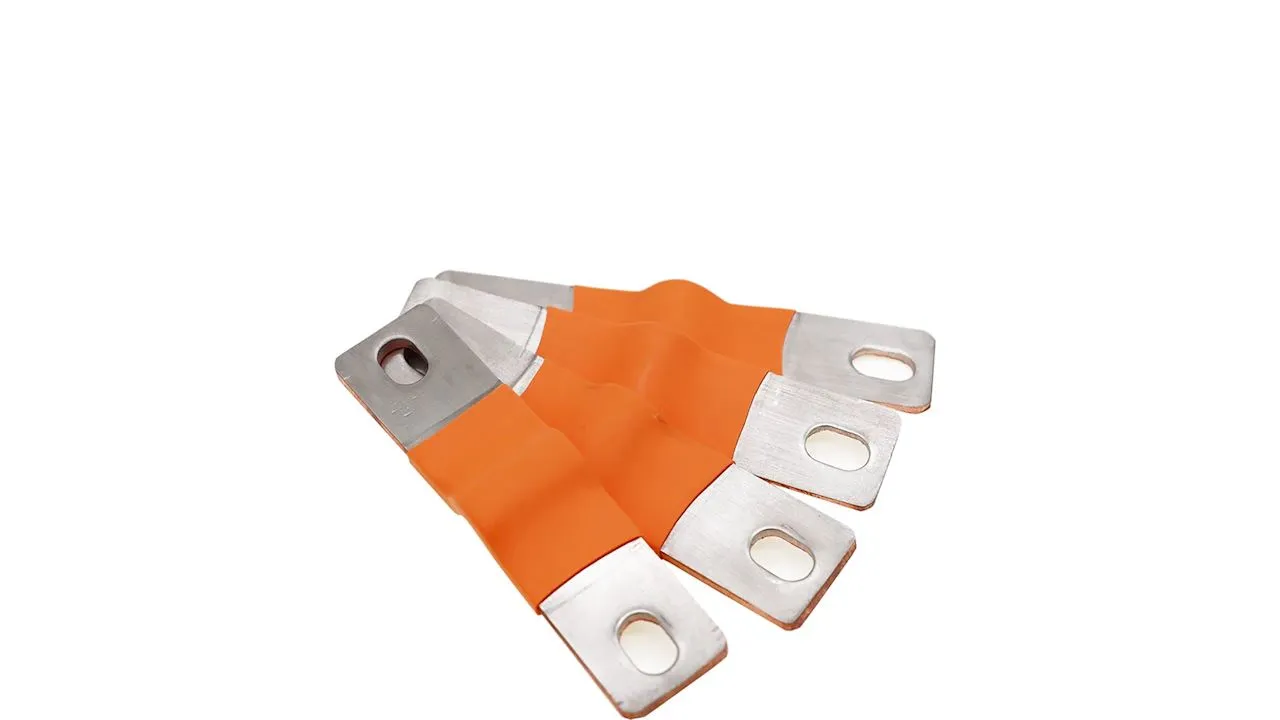

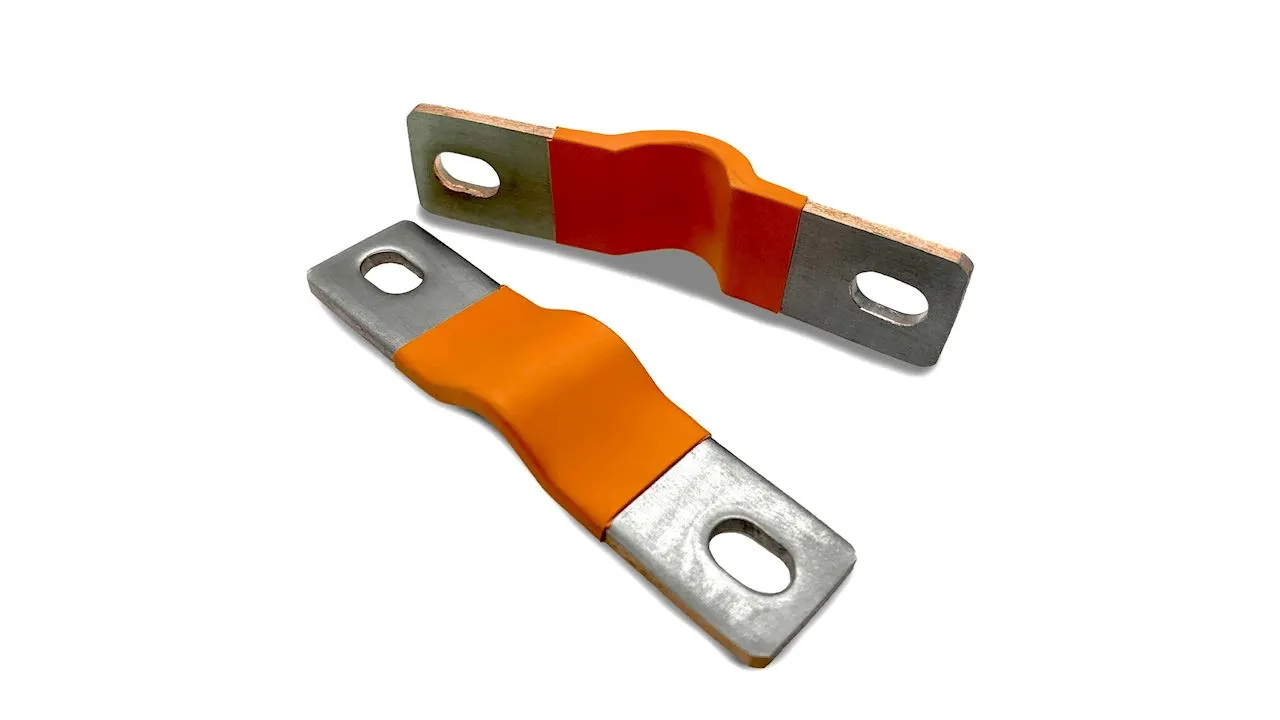

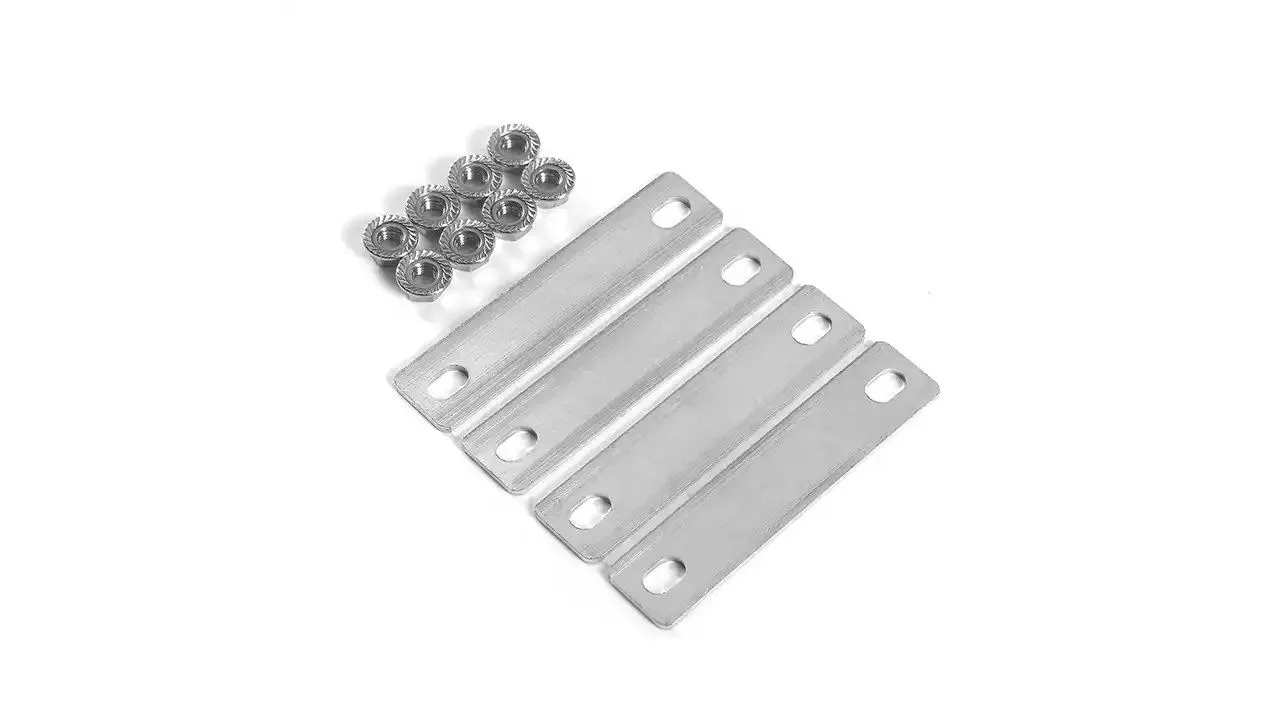

Cell Bus Bar:
Cell Bus Bar
Both types of bus bars are capable of 250A.
Our Regular Price: $9,120.00 (48% OFF)
On Sale: $4,750.00
Configuration Price: $4,846.00
Qty:
Description

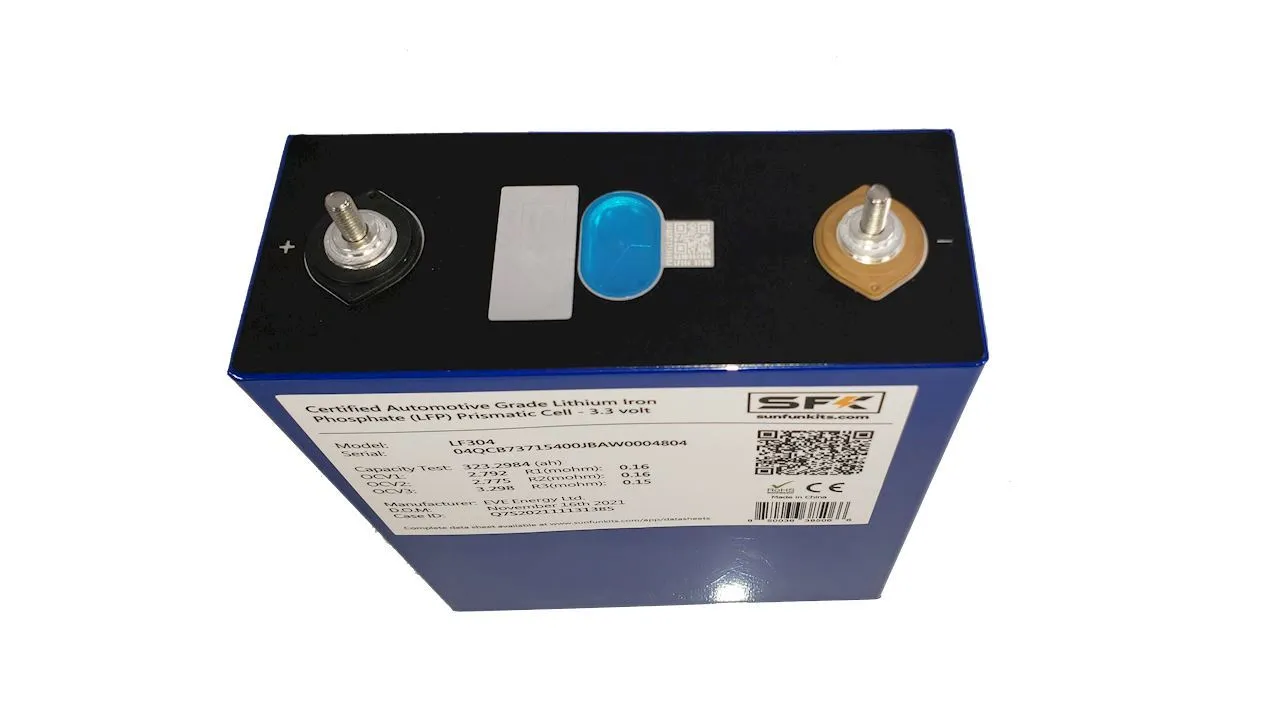

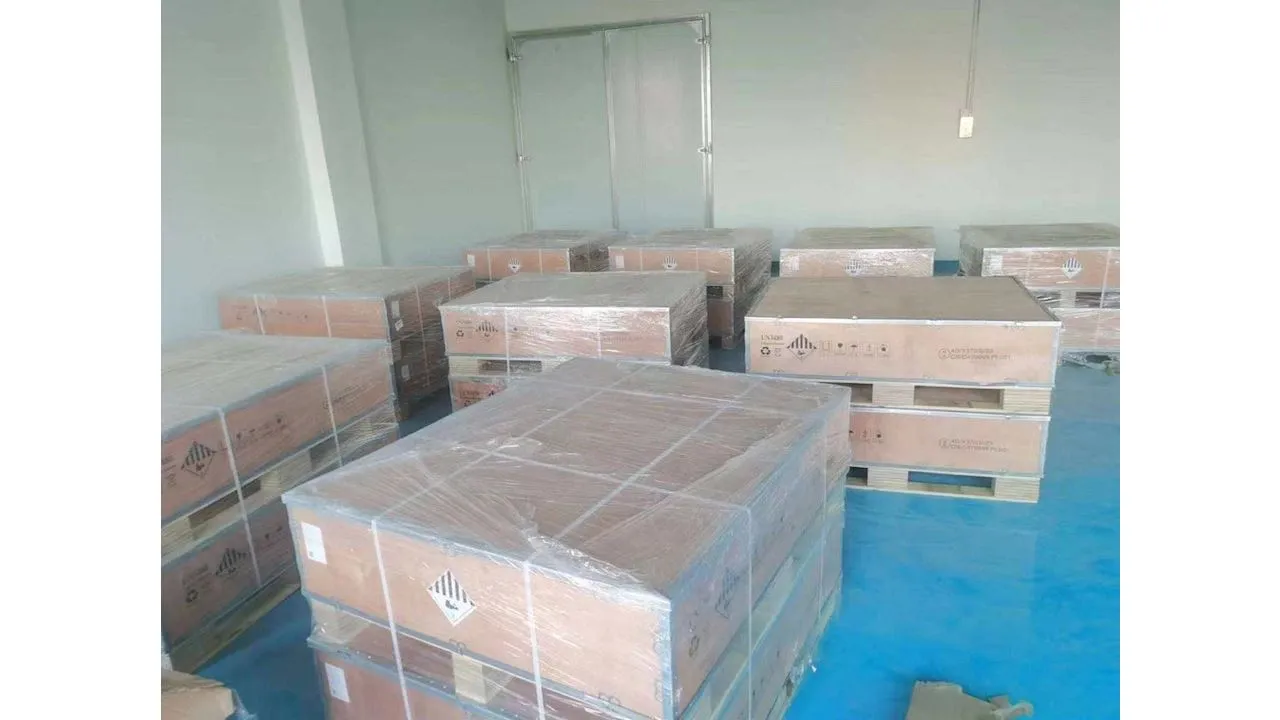

48 cell official EVE certified cells pallet MB31 EVE Cells. DDP Shipping is available to the mainland USA & Canada only! This an official EVE pallet with the SFK EVE MB31 cells and is dropped shipped directly to your location (all taxes and import duties paid). Arrival time is between 45-60 days. You may also choose to pick these up directly form our warehouse or have them shipped via your own carrier at no additional charges.



Sun Fun Kits proudly presents certified automotive grade cells for DIY projects and custom battery packs. These cells are certified by the manufacture and have been individually tested and matched for use in battery builds, projects, vehicle electrification and other projects requiring reliable DC power. Each cells lists is manufacturer test capacity at the time of cell construction, the Internal Resistance as well as resting voltage before and after the test. Sun Fun Kits provides a 2 year warranty on each cell (12 months full replacement, and 12 months of pro-rated).



EVE Lithium MB31 cells are some of the highest energy density LFP prismatic cells in the world, packing as much as 333 AH in a case common used for 270 AH cells. These cells can be used in various applications from automotive, backup power, energy storage and other uses where reliable DC power is needed. These are the same cells used in our ready made batteries and kits and are available directly from Sun Fun Kits for DIY projects. You may also add these to your kit order if you would like to create your own battery kit.



Please note: These batteries will require balancing and matching before they can be used in a battery pack, buyers of loose cells should be aware of the technical expertise needed to assemble a battery pack. We also recommend the use of supplemental resistance and or active balancers to ensure cells have equal charge.

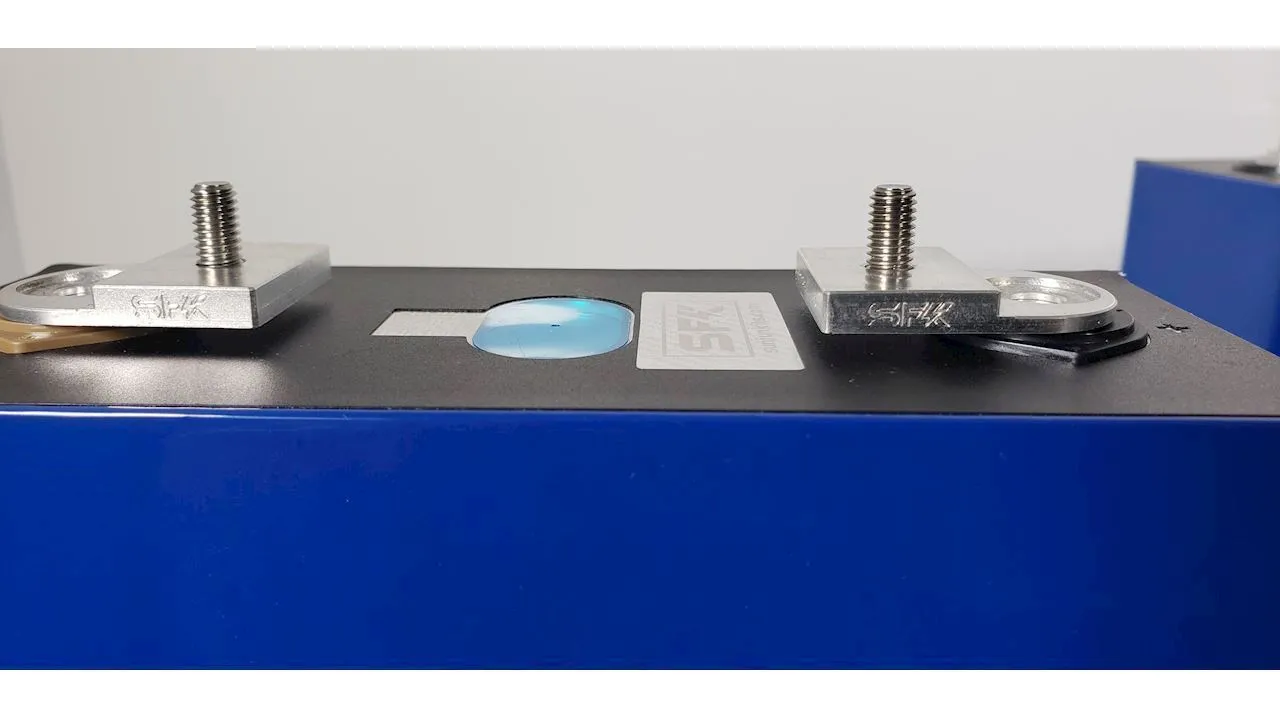

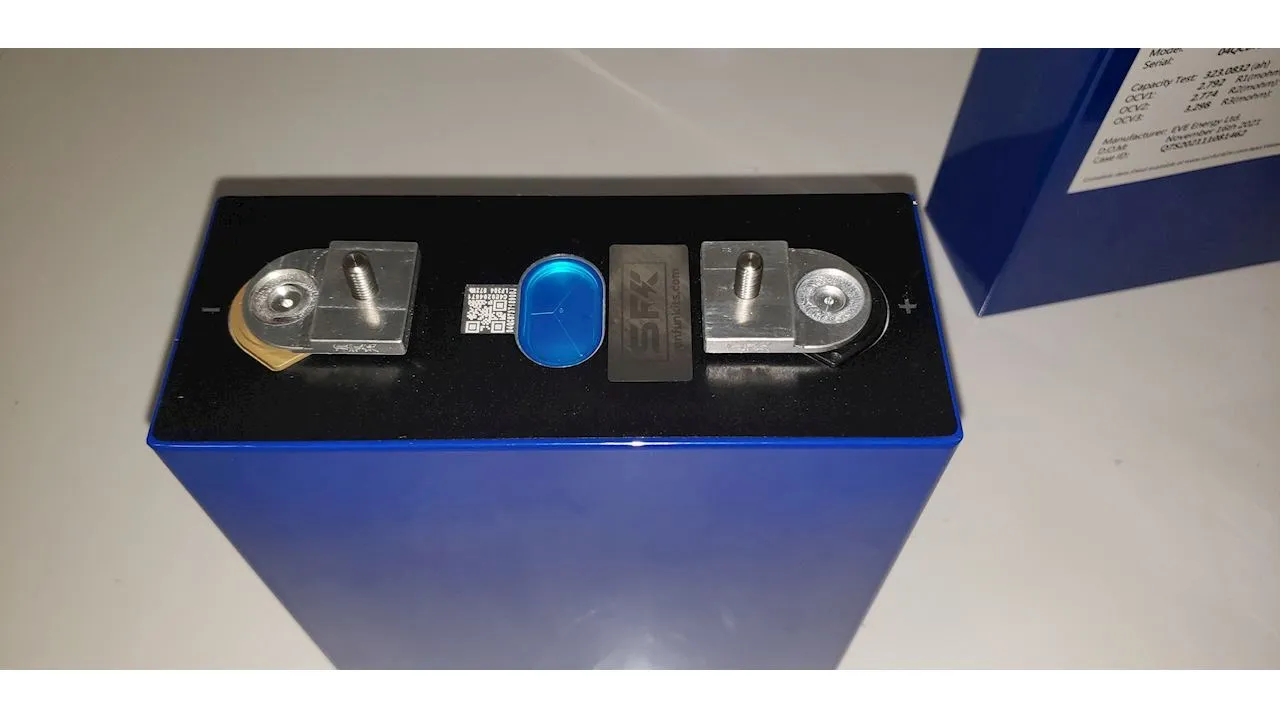

All batteries have been load & capacity tested to ensure they meet manufacturer specifications of 314 AH (+/- 5 AH) and will have between 314 AH to 333 AH of available capacity while under a .2C discharge load at STP at 3.2v nominal. The MB31 variant is offered with laser welded stainless steel studs using our high amp adapter rated for 300 amp continuous and 500 amp burst (5 seconds).



Downloads
Properties
Shipping Availability Over 1 Month
GTIN 00850036385158
HS Tariff Code 8507600020
Manufacturer Sun fun Kits
SKU SFK-MB31-HPL-IW
Battery Specs
Chemistry LifePo4 (lithium Iron Phosphate)
Certification Standard GB/T 31485-2015 , UL 1642 , UL1973
Battery Terminal SFK High Amp Terminal (300-500 Amps) , Standard Button Terminal (200 Amps)
Cell Bus Bar Rigid Copper Nickle Plated Bus Bars (2.00 mm) , Flexible Multi-Layer Copper with Nickle Outer Layers (2.2 mm)
Continuous Discharge (Watts) 500
Cells 48
Voltage 3.2
Cell Capacity (AH) 314
Max Discharge (Amps) 250 , 304 , 500
Max Charge (Amps) 150
Construction Material Aluminum , ABS
Battery Weight (Lbs) 11.5
Terminal Studs M6 , Steel Welded , 300 amp continuous , 500 amp burst
Physical Specs
Max Cell Height 204 MM
Item Weight 5.5 KG
Height 200 MM
Width 72 MM
Length 174 MM
General Information
Warehouse Location International Warehouse
Country of Origin China
Service and Support USA through Sun Fun Kits
Warranty 2 Year 12/24 , Sun Fun Kits USA Warranty
Kit Configurator
Cell Separator 0.5 , 1.0 , 1.5
