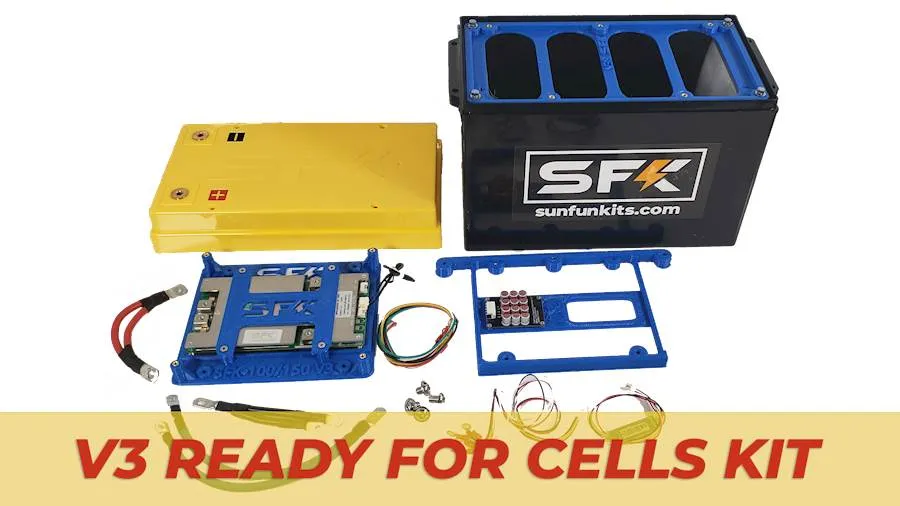

This is a cell ready V3 kit which can accept various brands of prismatic cells in the 260 - 320 AH class. It includes all the components needed to build your DIY battery, simply use your own cells. The V3 Kit includes, the Sun Fun Kits / JBD 150A V2 BMS with complete wiring harness, the SFK battery Case, and a supplementary active balancing circuit.
All Kits are built in the USA using domestic and globally sourced components and come with your standard 2 year limited warranty on the BMS & CASE.
Compatible with:
| Shipping Availability | 1 Day |
| Manufacturer | Sun Fun Kits |
| SKU | SFK-V3-KIT-CR |
| Battery Specs | |
| Bms Upgrade | SFK 200A V2 BMS (Built In Heating Port) |
| Certification Standard | GB/T 31485-2015 |
| Cells | 4S |
| Construction Material | ABS, Aluminum, PLA |
| Terminal Studs | M8 |
| Cable Specs | |
| Wire Gauge | 2 AWG |
| Physical Specs | |
| Item Weight | 56 lbs (including all components) , 25.4 Kg |
| Max Cell Height | 204 MM |
| Height | 305 MM , 11.6 Inch , 13 Inch including Terminal Stud |
| Width | 180 MM , 7.5 Inch |
| Length | 345 MM , 13.6 Inch , 14.6 Inch / 371 MM Including handles |
| Inside Dimensions | 335 L x 180 W x 215 H (MM) , 13.2 L x 7.0 W x 8.4 H (Inch) , Tapered Dimensions |
| General Information | |
| Country of Origin | USA , China |
| Warranty | 2 Year 12/24 , Sun Fun Kits USA Warranty |
